Hard Drive Mounting Bracket

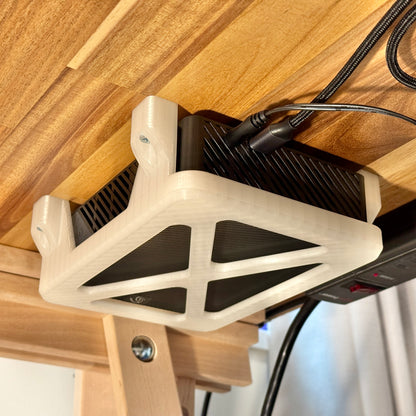

Mount your Seagate hard drive under your desk using this mounting bracket.

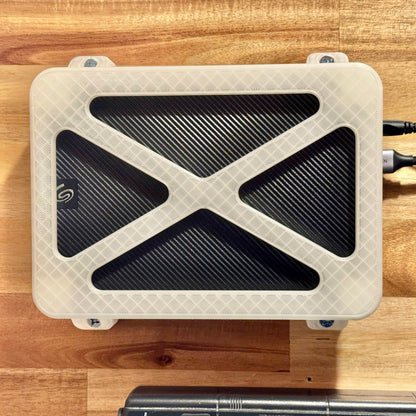

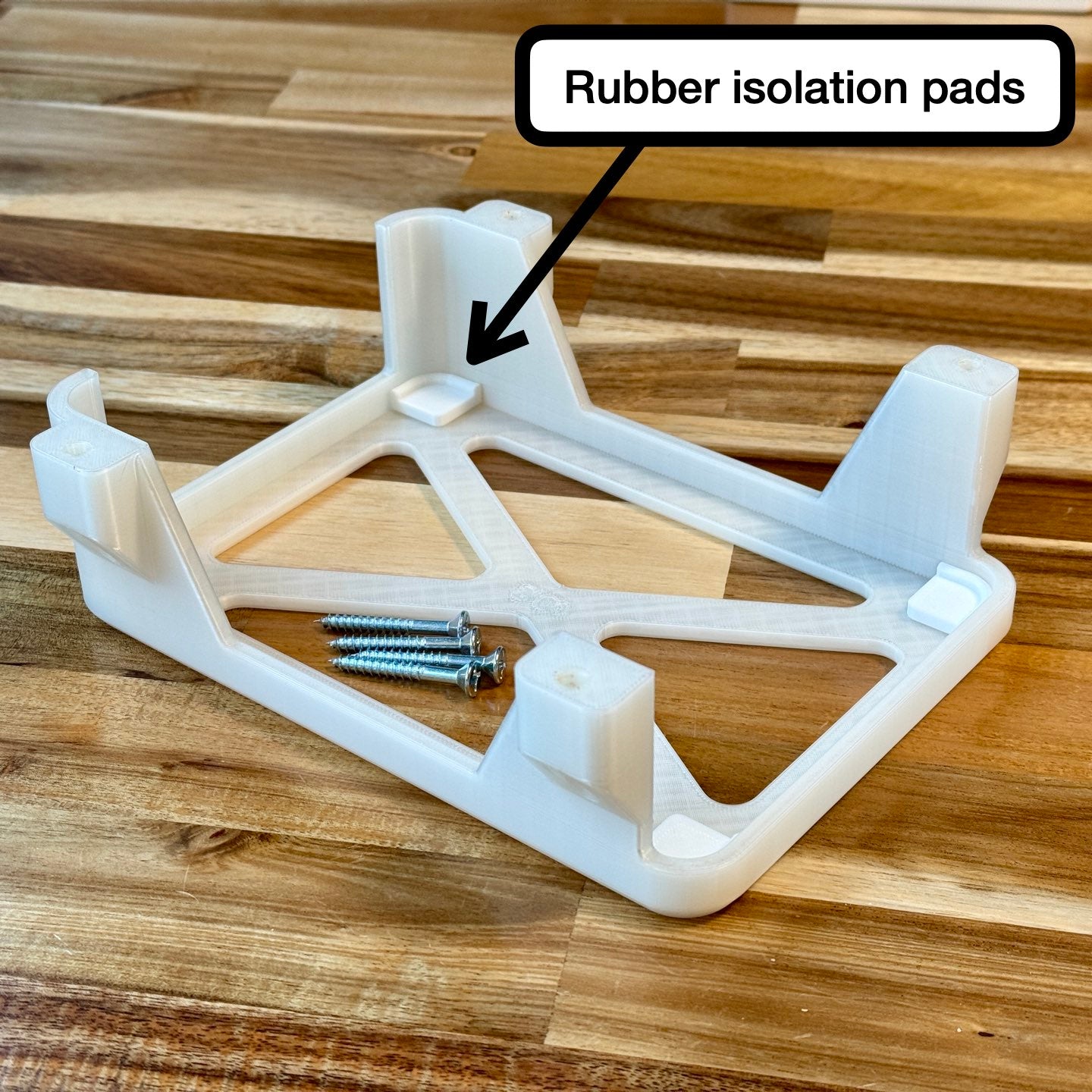

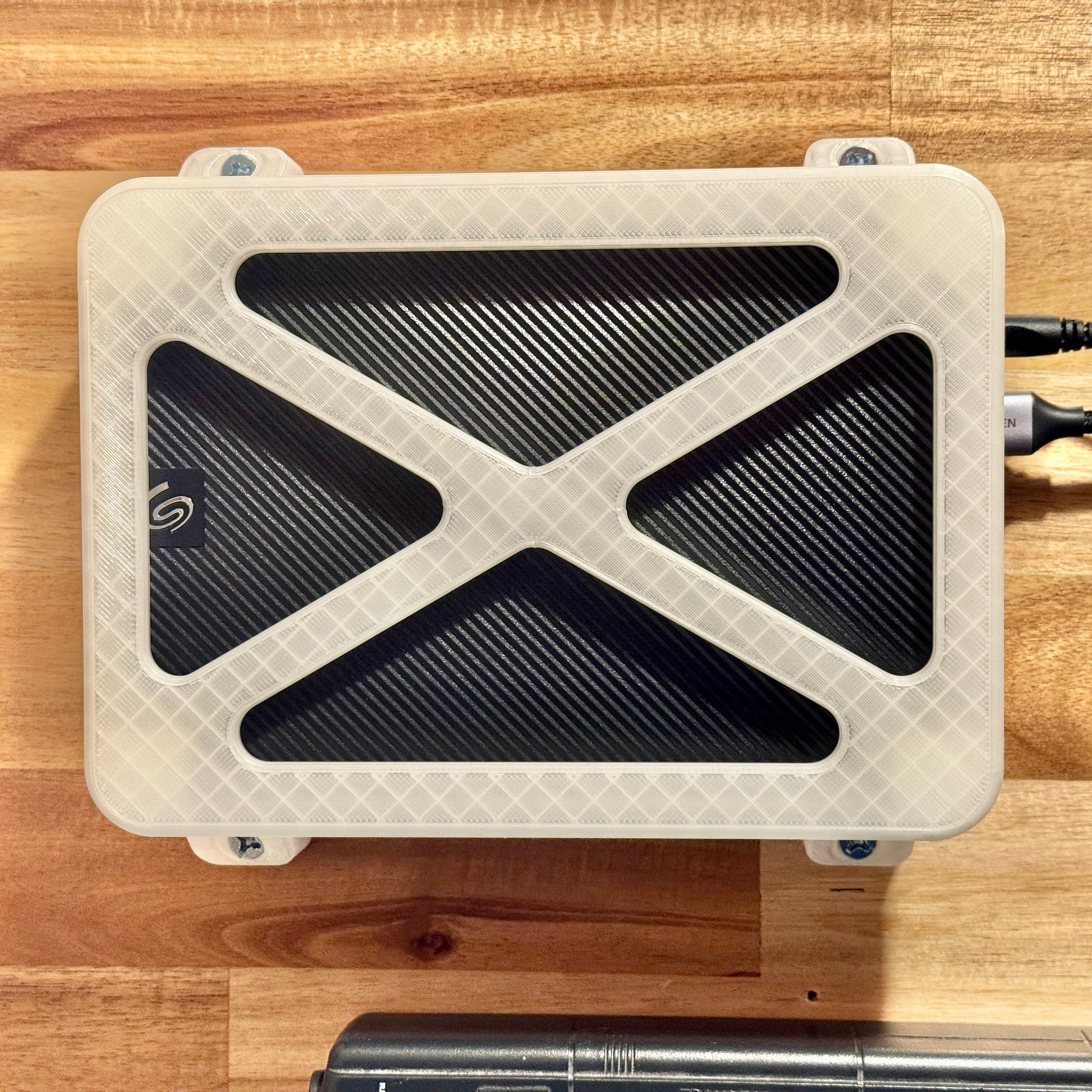

Each corner of the hard drive is resting on a rubber isolation pad to reduce vibration. For reference, I have a hard drive connected to my computer under my desk and I can not feel the vibration of the drive. The bracket has been designed to provide open air flow for proper cooling. Photos depict the "Natural" color option.

The dimension of the Seagate hard drive this is designed for is 7” x 5” x 1-5/8”. I can modify the design to accommodate other size hard drives upon request.

Installation:
1. Mark 4X holes using the included hole location template.
2. Drill holes ~3/4" deep. For softwood use a 5/64” drill bit. For hardwood use a 3/32” drill bit.
3. Install the bracket using the 4X included mounting screws.
4. Insert the hard drive into the bracket, onto the isolation pads.

Notes:
-I designed this bracket for my own use, and it may not be ideal for all installations. I can make modifications to the design as requested.
-Although this bracket is designed to support the weight of the hard drive, it has not gone through rigorous testing. Install and use at your own risk.
